Top Stacking and Lateral Reclaiming Stacker Reclaimer

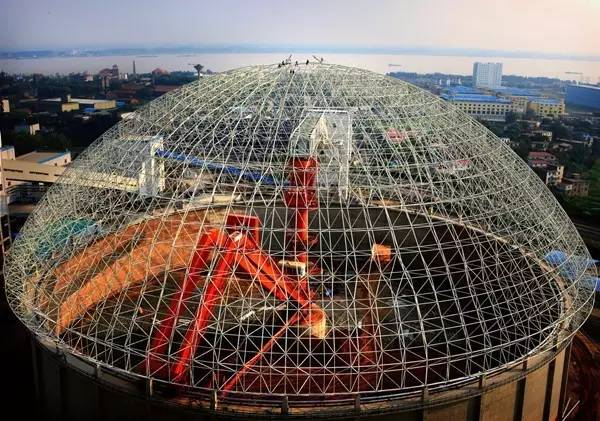

Top Stacking and Lateral Reclaiming S/R is used in the enclosed plant which can protect the material from rain and sunshine and protect the environment. There are two types of supporting: counter-weight and portal type.

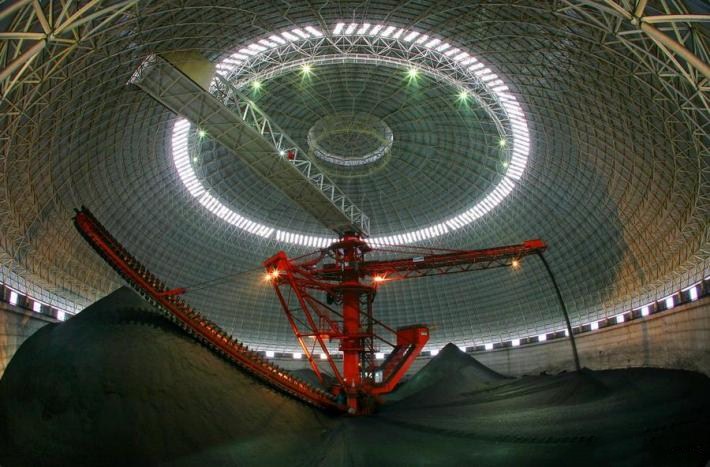

Top Stacking and Lateral Reclaiming S/R is consisted by rotation boom stacker, center column and side scraper reclaimer/ portal scraper reclaimer. The stockyard is fed by a slewing stacker. The material is stacked in a ring shaped pile, reclaiming is achieved by a slewing scraper with double-strand chain. The material is centrally discharged via a chute. The storage is flexible, stacking and reclaiming can occur simultaneously
Comparing with other stacker and reclaimer which are based on the same storage capacity, floor area saving: 40%-50%, manufacturing expenses saving 20%-40%. The enclosed operation environment can protect the material from rain and wind to ensure the stability of material content.
We can supply the non-standard design as per customer’s requirement.
